Тип вентилятора [AC/DC]DC постоянного тока | КонструкцияРадиальный | Производительность [CFM]411.8 |
Уровень шума [dB/A]62 | БрендEbmpapst | Вес [кг]3.3 |
Производительность [м3/ч]700 | Питание [В]24 | Частота вращения [об/мин]1780 |
D1G133-AB29-52 поставки и подбор по характеристикам
Для множества применений в области вентиляции ЭБМ–ПАПСТ предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1– / 3–фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа

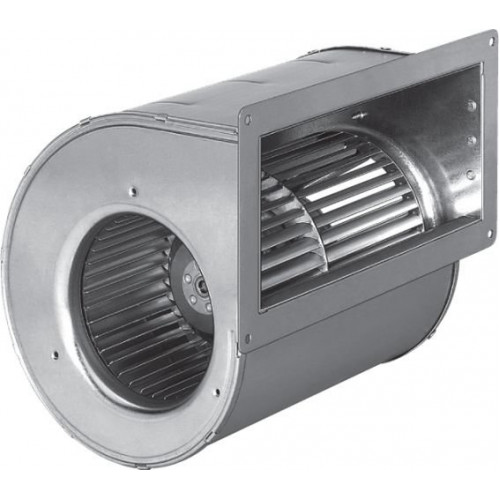

Описание D1G133-AB29-52:
- Материал: спиральный корпус и рабочее колесо изготовлены из оцинкованной листовой стали.
- Техническое оснащение: управляющий вход 0 – 10 В DC / ШИМ, таховывод.
- Конструкция: встроенный стандартный двигатель с внешним ротором, вал расположен со стороны ротора, вал имеет с двух сторон виброизолирующее крепление.
- Подшипник: упорный.
- Направление вращения: вправо, если смотреть на ротор.
- Класс защиты: IP42.
- Монтажное положение и отверстия для слива конденсата: при отсутствии отверстий для слива конденсата монтажное положение – любое.
- Сертификаты: UL, CSA, CCC (для постоянного напряжения 48 В).
- Вариант: может поставляться также с выходным фланцем.

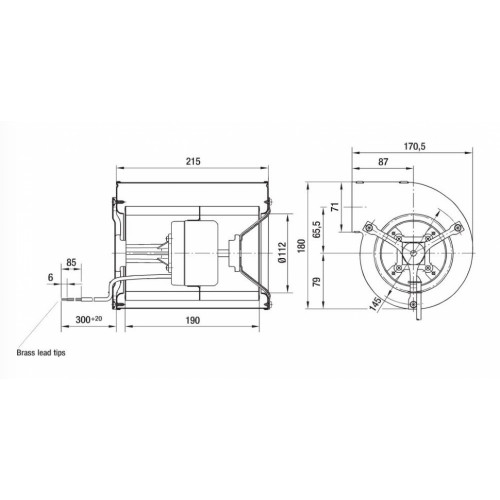

Технические характеристики D1G133-AB29-52
График подбора рабочей точки
Расшифровка наименования
1) Тип
D – Центробежный вентилятор двухстороннего всасывания
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
D – Трехфазный двигатель
Е – Однофазный двигатель с пусковым конденсатором
G – ЕС–двигатель
S – Двигатель с расщепленными полюсами
Q – Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя
5) Код механического исполнения
6) Код электрического исполнения
7) Код вариантов механического исполнения
Тип вентилятора [AC/DC] | DC постоянного тока |
---|---|
Конструкция | Радиальный |
Производительность [CFM] | 411.8 |
Уровень шума [dB/A] | 62 |
Бренд | Ebmpapst |
Вес [кг] | 3.3 |
Производительность [м3/ч] | 700 |
Питание [В] | 24 |
Частота вращения [об/мин] | 1780 |
Частота вращения [rpm] | 1780 |
Мощность [кВт] | 0.105 |
Мощность [W] | 105 |
Давление [Pa] | 50 |
Типоразмер [мм] | 133 |
Сила тока [A] | 5.6 |
