R2D225-AG02-10 поставки и подбор по характеристикам
Каталог ралиальных вентиляторов 2007 - Русский | |
Каталог ралиальных Blowers АС EC - 2011 - English |
Для множества применений в области вентиляции ЭБМ–ПАПСТ предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.

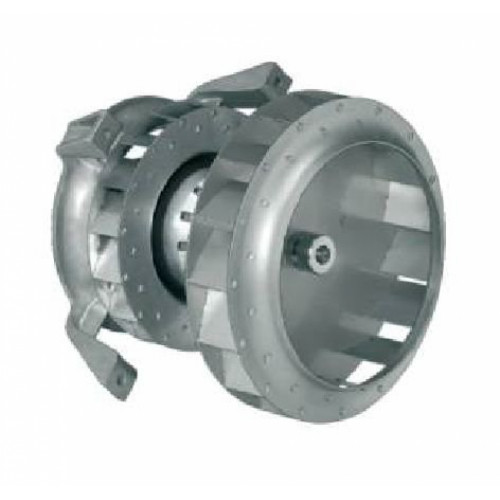

Циркуляционные вентиляторы R2D225-AG02-10
Циркуляционные вентиляторы разработаны с учетом специальных требований для обеспечения циркуляции горячего воздуха, например, в хлебопекарных печах и духовках, вертикальных автономных кондиционерах, стерилизационных установках, установках для нагревания блюд и подогрева посуды и др.
Конструкция вентилятора состоит из двигателя с расщепленными полюсами, монтируемого с помощью специальных крепежных подшипниковых щитов за пределами горячей зоны, и центробежного рабочего колеса из листовой стали FAL, высококачественной стали или литого под давлением алюминия, которое работает в зоне воздействия высокой температуры. Горячий воздух создается устройствами, не входящими в комплект поставляемых нами изделий..
В зависимости от типа и требований используются металлокерамические подшипники скольжения с термостойкими смазочными материалами или шарикоподшипники. Максимально допустимая температура подшипника составляет 120 °С. Конструкции с подшипниками скольжения можно использовать только при горизонтальном расположении вала;
с шарикоподшипниками допустимы любые положения при монтаже. 1
Класс изоляции обмотки - Н.
В зависимости от предусмотренных мер по обеспечению тепловой изоляции между двигателем и рабочим колесом вентилятора и материала, из которого изготовлено колесо, температура циркулирующего воздуха может достигать примерно 250 °С, кратковременно даже 500 °С (например, при пиролитической автоматической очистке духовок).
Описанные ниже стандартные типы демонстрируют широкие возможности выбора. Обеспечиваемая производительность циркуляции в значительной мере зависит от расположения вентилятора при монтаже, так что указанные значения производительности, давления и частоты вращения носят только ориентировочный характер и соответствуют типичным условиям монтажа. Для серийного производства можно согласовывать мощность двигателя, крепление, длину вала и параметры рабочего колеса.
Критерии выбора вентиляторов горячего воздуха
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном сопротивлении
- Напряжение питания – постоянное и переменное (1– / 3–фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание R2D225-AG02-10:
- Материал: рабочее колесо для циркуляции горячего воздуха из нержавеющей стали
- Подшипниковая опора: шариподшипник, не требующий технического обслуживания
- Вращение: R2D225-AG02-10 по часовой стрелки если смотреть на колесо горячего воздуха
- Подключение: клеммная колодка
- Класс изоляции: "F"
Рабочие параметры вентилятора R2D225-AG02-10
Тип R2D225-AG02-10 | |
Мотор M2E068-DF | |
Фаза | 1~ |
Номинальное напряжение VAC | 230/400 |
Частота Hz | 50 |
Скорость вращения min-1 | 2700/3000 |
Входная мощность W | 165/250 |
Потребляемый ток A | 0,51 |
Макс. противодавление Pa | 0 |
Макс. темп. окр. среды °C | 250 |
Макс. темп. кратковременно окр. среды °C | 500 |

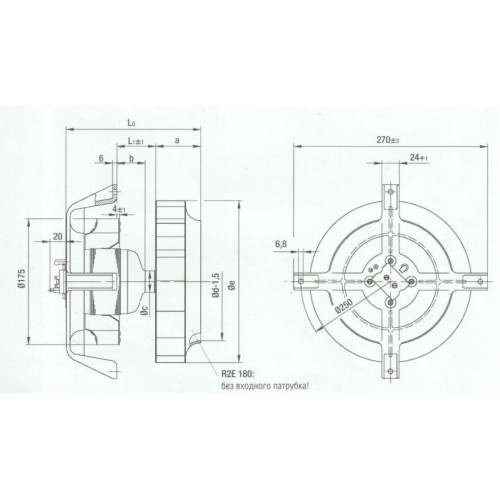

Техническое описание R2D225-AG02-10
Размер двигателя | 225 mm |
Покрытие ротора | Без лакокрасочного покрытия |
Материал рабочего колеса | Крепление двигателя посредством консолей с односторонним креплением |
Степень защиты | IP 00 |
Класс изоляции | F |
Класс защиты от влажности | F0 |
Максимально допустимая темп. окружающей среды электродвигателя | + 80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | - 40 °C |
Отверстия для отвода конденсата | - |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 0,75 mA |
Вывод кабеля подключения | Осев. |
Класс защиты | I (если защитный провод подключен стороной заказчика) |
График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
A - осевой вентилятор
S - осевой вентилятор с защитной решеткой
W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
D - Трехфазный двигатель
Е - Однофазный двигатель с пусковым конденсатором
G - ЕС-двигатель
S - Двигатель с расщепленными полюсами
Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя
5) Код механического исполнения
6) Код электрического исполнения
7) Код вариантов механического исполнения
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Радиальный |
Производительность [CFM] | 735.3 |
Бренд | Ebmpapst |
Вес [кг] | 4 |
Производительность [м3/ч] | 1250 |
Частота [Гц] | 50 |
Питание [В] | 230/400 |
Частота вращения [об/мин] | 3000 |
Частота вращения [rpm] | 3000 |
Мощность [кВт] | 0.25 |
Мощность [W] | 250 |
Давление [Pa] | 400 |
Типоразмер [мм] | 225 |
Сила тока [A] | 0.51 |
