Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]65 |
БрендEbmpapst | Вес [кг]2.6 | Производительность [м3/ч]850 |
Частота [Гц]50 | Питание [В]380 | Частота вращения [об/мин]1300 |
Тех описание Hyblade Ebmpapst S4D300-AS34-31 - RU | |
Инструкция по эксплуатации Ebmpapst S4D300-AS34-31 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |
S4D300-AS34-31 решение задач в области вентиляционной техники
Для множества применений в области вентиляции ЭБМ-ПАПСТ предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении);
- Напряжение питания – постоянное и переменное 1- / 3- фазное;
- Уровень шума;
- Коэффициент полезного действия;
- Имеющееся пространство для монтажа и место применения;
- Количество штук;
- Условия окружающей среды (влажность, температура,климат);
- Диаметр рабочего колеса.

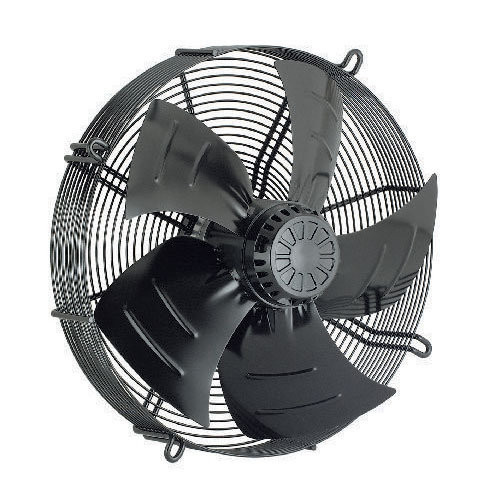

Описание S4D300-AS34-31:
- Класс защиты: IP 44
- Класс изоляции: "B"
- Защита двигателя: температурный предохранитель выведен
Рабочие параметры вентилятора S4D300-AS34-31
Тип S4D300-AS34-31 | ||
Мотор M4D068-CF | ||
Фаза | 3~ | 3~ |
Номинальное напряжение VAC | 400 | 400 |
Частота Hz | 50 | 50 |
Метод опред. данных | cн | cн |
Соответствует нормативам | CE | CE |
Скорость вращения min-1 | 1300 | 1400 |
Входная мощность W | 68 | 90 |
Потребляемый ток A | 0,14 | 0,15 |
Макс. противодавление Pa | 60 | 70 |
Мин. темп. окр. среды °C | -25 | -25 |
Макс. темп. окр. среды °C | 60 | 55 |

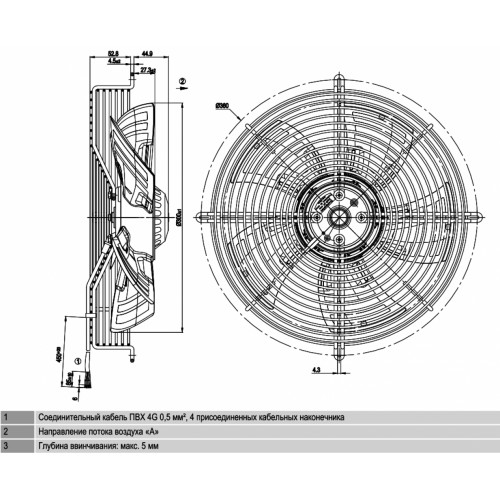

Техническое описание S4D300-AS34-31
Вес | 2,6 kg |
Размер двигателя | 300 mm |
Покрытие ротора | С лакокрасочным покрытием черного цвета |
Материал клемной коробки | Полимер ABS |
Материал лопастей | Пластик ПП, армированный стекловолокном |
Материал защитной решётки | Сталь фосфатированная, с черным полимерным покрытием |
Количество лопастей | 5 |
Направление потока | A |
Направление вращения | Справа, вид на ротор |
Степень защиты | IP 44; в зависимости от монтажного положения |
Класс изоляции | B |
Класс защиты от влажности | F1-2 |
Максимально допустимая темп. окружающей среды электродвигателя | + 80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | - 40 °C |
Положение при монтаже | Горизонтальное расположение вала или ротор внизу |
Отверстия для отвода конденсата | Со стороны ротора |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 0,75 mA |
Защита двигателя | Реле контроля температуры (TW) |
Вывод кабеля подключения | Разл. |
Класс защиты | I (если защитный провод подключен стороной заказчика) |
График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
A - осевой вентилятор;
S - осевой вентилятор с защитной решеткой;
W - осевой вентилятор со стеновым колесом.
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
D - Трехфазный двигатель;
Е - Однофазный двигатель с пусковым конденсатором;
G - ЕС-двигатель;
S - Двигатель с расщепленными полюсами;
Q - Квадратный двигатель с расщепленными полюсами.
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя;
5) Код механического исполнения;
6) Код электрического исполнения;
7) Код вариантов механического исполнения.
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 65 |
Бренд | Ebmpapst |
Вес [кг] | 2.6 |
Производительность [м3/ч] | 850 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 1300 |
Мощность [кВт] | 0.068 |
Давление [Pa] | 60 |
Типоразмер [мм] | 300 |
Сила тока [A] | 0.14 |
Исполнение | Решетка |
