Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]71 |
БрендEbmpapst | Вес [кг]9.5 | Производительность [м3/ч]4460 |
Частота [Гц]50 | Питание [В]380 | Частота вращения [об/мин]1360 |
Тех описание Ebmpapst S4D450-BO14-02 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |

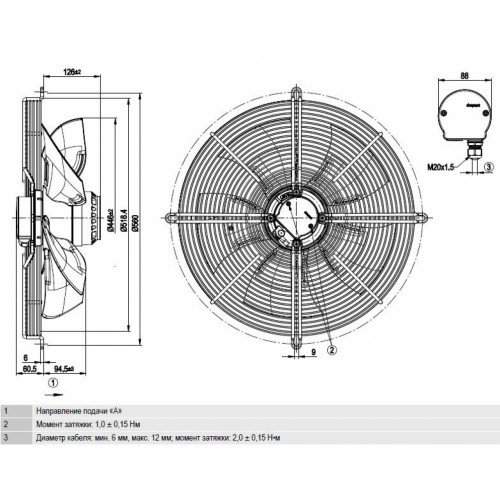

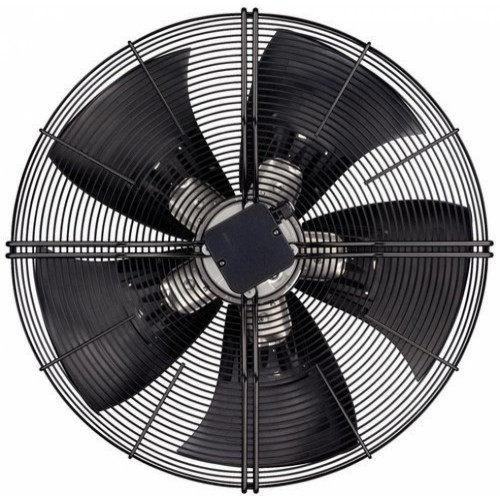

S4D450-BO14-02 с защитной решёткой
Для множества применений в области вентиляции ЭБМ-ПАПСТ предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3-фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание S4D450-BO14-02:
- Класс защиты: IP 54 (учесть положение при монтаже и наличие отверстий для слива конденсата)
- Класс изоляции: "F"
- Защита двигателя: температурный предохранитель с выведен
Рабочие параметры вентилятора S4D450-BO14-02
Тип S4D450-BO14-02 | ||
Мотор M4D094-HA | ||
Фаза | 3~ | 3~ |
Номинальное напряжение VAC | 400 | 400 |
Подключение | ? | Y |
Частота Hz | 50 | 50 |
Метод опред. данных | мн | мн |
Соответствует нормативам | CE | CE |
Скорость вращения min-1 | 1360 | 1110 |
Входная мощность W | 480 | 340 |
Потребляемый ток A | 0.98 | 0.58 |
Макс. противодавление Pa | 140 | 90 |
Макс. темп. окр. среды °C | 65 | 65 |
Пусковой ток A | 3.9 | 1.3 |
Общий КПД % | 35,4 | |
Класс эффективности N | 43,9 | |
Входная мощность kW | 0,46 | |
Расход воздуха m?/h | 4530 | |
Увелич. давления Pa | 133 | |
Скорость вращения min-1 | 1365 |
Техническое описание S4D450-BO14-02
Вес | 9,5 kg |
Размер двигателя | 450 mm |
Покрытие ротора | С лакокрасочным покрытием черного цвета |
Материал клемной коробки | Полимер ABS |
Материал лопастей | Полимер PP-GF40 |
Количество лопастей | 5 |
Направление потока | «A» |
Направление вращения | Справа, вид на ротор |
Степень защиты | IP 54 |
Класс изоляции | «F» |
Класс защиты от влажности | F4-1 |
Максимально допустимая темп. окружающей среды электродвигателя | +80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | -40 °C |
Положение при монтаже | Горизонтальное расположение вала или ротор внизу |
Отверстия для отвода конденсата | Со стороны ротора |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 3,5 mA |
Электрическое подсоединение | Через клеммную коробку |
Защита двигателя | С реле контроля температуры (TW) |
Вывод кабеля подключения | Осев |
Класс защиты | I (если защитный провод подключен стороной заказчика) |
График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
A - осевой вентилятор
S - осевой вентилятор с защитной решеткой
W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
D - Трехфазный двигатель
Е - Однофазный двигатель с пусковым конденсатором
G - ЕС-двигатель
S - Двигатель с расщепленными полюсами
Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя
5) Код механического исполнения
6) Код электрического исполнения
7) Код вариантов механического исполнения
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 71 |
Бренд | Ebmpapst |
Вес [кг] | 9.5 |
Производительность [м3/ч] | 4460 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 1360 |
Мощность [кВт] | 0.48 |
Давление [Pa] | 140 |
Типоразмер [мм] | 450 |
Сила тока [A] | 0.98 |
Исполнение | Решетка |
