Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]77 |
БрендEbmpapst | Вес [кг]14.7 | Производительность [м3/ч]12600 |
Частота [Гц]50 | Питание [В]380 | Частота вращения [об/мин]1270 |
Тех описание Hyblade Ebmpapst S4D560-AM03-01 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |

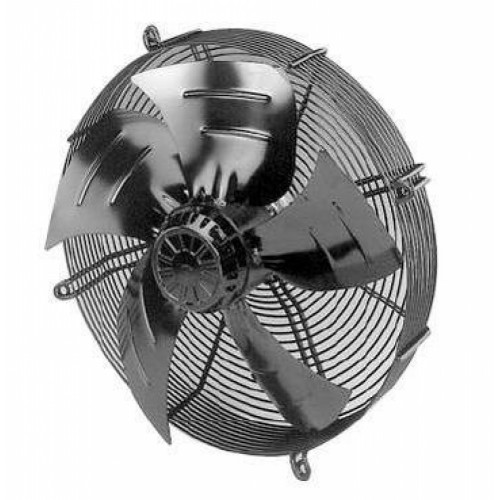

S4D560-AM03-01 описание
Для множества применений в области вентиляции Ebmpapst предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3- фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание S4D560-AM03-01:
- Класс защиты: IP 54 (учесть положение при монтаже и наличие отверстий для слива конденсата)
- Класс изоляции: "F"
- Защита двигателя: температурный предохранитель с выведен
Рабочие параметры вентилятора S4D560-AM03-01
Тип S4D560-AM03-01 | ||
Мотор M4D110-GF | ||
Фаза | 3~ | 3~ |
Номинальное напряжение VAC | 400 | 400 |
Частота Hz | 50 | 50 Y |
Метод опред. данных | мн | мн |
Соответствует нормативам | CE | CE |
Скорость вращения min-1 | 1220 | 870 |
Входная мощность W | 1160 | 650 |
Потребляемый ток A | 1,95 | 1,1 |
Макс. противодавление Pa | 140 | 72 |
Мин. темп. окр. среды °C | -40 | -40 |
Макс. темп. окр. среды °C | 50 | 50 |
Пусковой ток A | 6,5 | 6,5 |

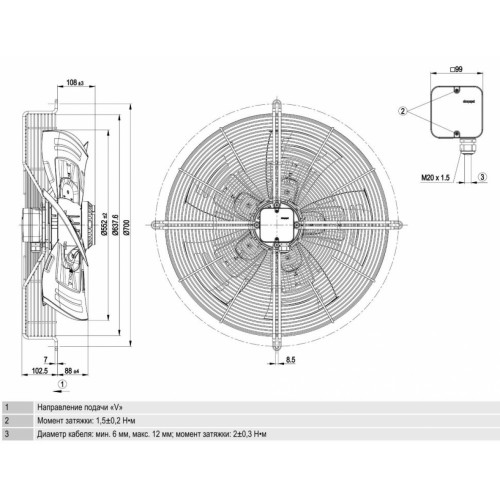

Техническое описание S4D560-AM03-01
Вес | 14,7 kg |
Размер двигателя | 560 mm |
Покрытие ротора | Скрепление заливкой с алюминием |
Материал клемной коробки | Полимер PP |
Материал лопастей | Вкладыш из алюминиевой пластины, с полимерным покрытием PP |
Материал защитной решётки | Сталь, с полимерным покрытием черного цвета (RAL 9005) |
Количество лопастей | 5 |
Направление потока | V |
Направление вращения | Слева, вид на ротор |
Степень защиты | IP 54 |
Класс изоляции | F |
Класс защиты от влажности | F3-1 |
Максимально допустимая темп. окружающей среды электродвигателя | + 80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | - 40 °C |
Положение при монтаже | Горизонтальное |
Отверстия для отвода конденсата | На стороне ротора |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 3,5 mA |
Защита двигателя | Реле контроля температуры (TW) |
Вывод кабеля подключения | Осев. |
Класс защиты | I (если защитный провод подключен стороной заказчика) |
График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
- A - осевой вентилятор
- S - осевой вентилятор с защитной решеткой
- W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
- D - Трехфазный двигатель
- Е - Однофазный двигатель с пусковым конденсатором
- G - ЕС-двигатель
- S - Двигатель с расщепленными полюсами
- Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя;
5) Код механического исполнения;
6) Код электрического исполнения;
7) Код вариантов механического исполнения.
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 77 |
Бренд | Ebmpapst |
Вес [кг] | 14.7 |
Производительность [м3/ч] | 12600 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 1270 |
Мощность [кВт] | 1.1 |
Давление [Pa] | 140 |
Типоразмер [мм] | 560 |
Сила тока [A] | 1.95 |
Исполнение | Решетка |
