Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]63 |
БрендEbmpapst | Вес [кг]14.1 | Производительность [м3/ч]8360 |
Частота [Гц]50 | Питание [В]380 | Частота вращения [об/мин]700 |
Тех описание Hyblade Ebmpapst S8D630-AN01-01 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |

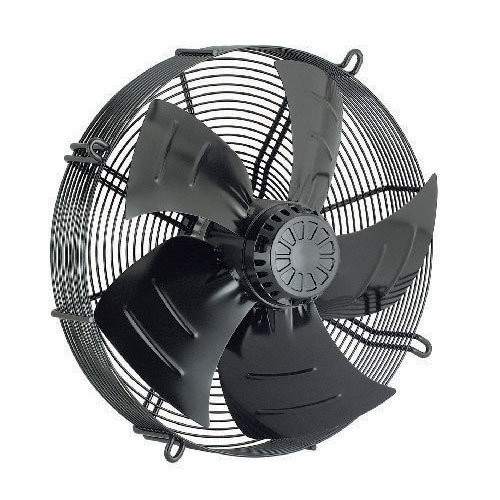

S8D630-AN01-01 решение задач в области вентиляционной техники
Для множества применений в области вентиляции Ebmpapst предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3- фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание S8D630-AN01-01:
- Класс защиты: IP 54 (учесть положение при монтаже и наличие отверстий для слива конденсата)
- Класс изоляции: "F"
- Защита двигателя: температурный предохранитель с выведен
Рабочие параметры вентилятора S8D630-AN01-01
Тип S8D630-AN01-01 | ||
Мотор M8D110-GF | ||
Фаза | 3~ | 3~ |
Номинальное напряжение VAC | 400 | 400 |
Частота Hz | 50 | 50Y |
Метод опред. данных | мн | мн |
Соответствует нормативам | CE | CE |
Скорость вращения min-1 | 660 | 520 |
Входная мощность W | 330 | 190 |
Потребляемый ток A | 0,83 | 0,39 |
Макс. противодавление Pa | 60 | 36 |
Мин. темп. окр. среды °C | -40 | -40 |
Макс. темп. окр. среды °C | 65 | 65 |
Пусковой ток A | 1,85 | 0,62 |
Общий КПД % | 26,5 | |
Класс эффективности N | 36 | |
Входная мощность kW | 0,32 | |
Расход воздуха m3/h | 5255 | |
Увелич. давления Pa | 58 | |
Скорость вращения min-1 | 670 |
Техническое описание S8D630-AN01-01
Вес | 14,1 kg |
Размер двигателя | 630 mm |
Покрытие ротора | С лакокрасочным покрытием черного цвета |
Материал клемной коробки | Полимер PP |
Материал лопастей | Напрессованная, круглая листовая заготовка, с полимерным покрытием PP |
Материал защитной решётки | Сталь, с полимерным покрытием черного цвета (RAL 9005) |
Количество лопастей | 5 |
Направление потока | V |
Направление вращения | Справа, вид на ротор |
Степень защиты | IP 54 |
Класс изоляции | F |
Класс защиты от влажности | F4-1 |
Максимально допустимая темп. окружающей среды электродвигателя | + 80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | - 40 °C |
Положение при монтаже | Горизонтальное расположение вала |
Отверстия для отвода конденсата | Со стороны ротора |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 3,5 mA |
Защита двигателя | Реле контроля температуры (TW) |
Вывод кабеля подключения | Осев. |
Класс защиты | I (если защитный провод подключен стороной заказчика) |

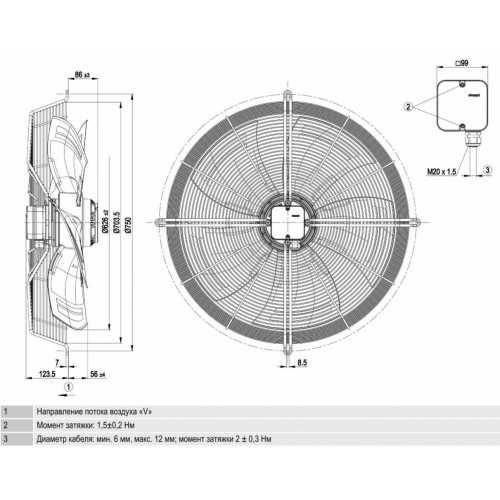

График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
- A - осевой вентилятор
- S - осевой вентилятор с защитной решеткой
- W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
- D - Трехфазный двигатель
- Е - Однофазный двигатель с пусковым конденсатором
- G - ЕС-двигатель
- S - Двигатель с расщепленными полюсами
- Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя;
5) Код механического исполнения;
6) Код электрического исполнения;
7) Код вариантов механического исполнения.
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 63 |
Бренд | Ebmpapst |
Вес [кг] | 14.1 |
Производительность [м3/ч] | 8360 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 700 |
Мощность [кВт] | 0.33 |
Давление [Pa] | 60 |
Типоразмер [мм] | 630 |
Сила тока [A] | 0.83 |
Исполнение | Решетка |
