Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]77 |
БрендEbmpapst | Производительность [м3/ч]24500 | Частота [Гц]50 |
Питание [В]380 | Частота вращения [об/мин]435 | Мощность [кВт]0.36 |
Каталог осевых вентиляторов 2007 - Русский | |
Каталог осевых вентиляторов 2007 - EN | |
Каталог осевых вентиляторов Hyblade 2012 350-450 мм - EN | |
Каталог осевых вентиляторов Hyblade 2010 500-910 мм - EN |

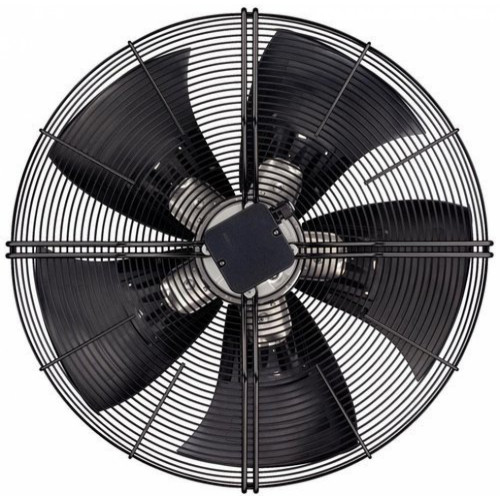

SZD800-CG03-01 применение и использование
Для множества применений в области вентиляции Ebmpapst предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3-фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание SZD800-CG03-01:
- Материал: лопасти рабочего колеса из литого под давлением алюминия;
- Класс защиты: IP 54 (учесть положение при монтаже и наличие отверстий для слива конденсата);
- Класс изоляции: "F";
- Защита двигателя: температурный предохранитель с выведен.
Технические характеристики SZD800-CG03-01

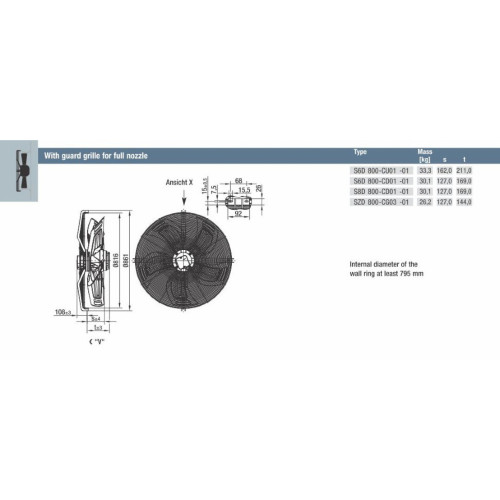

Варианты исполнения и конструкции SZD800-CG03-01
График подбора рабочей точки
Расшифровка наименования
1) Тип
- A - осевой вентилятор
- S - осевой вентилятор с защитной решеткой
- W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
- D - Трехфазный двигатель
- Е - Однофазный двигатель с пусковым конденсатором
- G - ЕС-двигатель
- S - Двигатель с расщепленными полюсами
- Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя;
5) Код механического исполнения;
6) Код электрического исполнения;
7) Код вариантов механического исполнения.
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 77 |
Бренд | Ebmpapst |
Производительность [м3/ч] | 24500 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 435 |
Мощность [кВт] | 0.36 |
Давление [Pa] | 40 |
Типоразмер [мм] | 800 |
Сила тока [A] | 1.12 |
Исполнение | Решетка |
