Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | МатериалСталь |
ПодключениеКлеммная коробка | Уровень шума [dB/A]78 | БрендEbmpapst |
Вес [кг]52.4 | Производительность [м3/ч]21770 | Частота [Гц]50 |

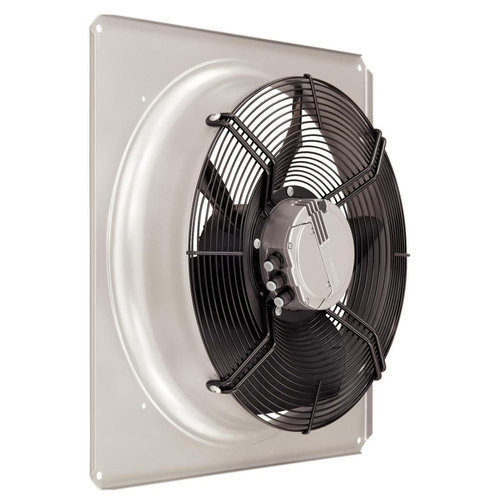

Тех описание Hyblade Ebmpapst W6D910-GA01-01 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |
A8D910-AD03-01 решение задач в области вентиляционной техники
Для множества применений в области вентиляции ЭБМ-ПАПСТ предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3-фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание A8D910-AD03-01:
Рабочие параметры вентилятора A8D910-AD03-01
График рабочей точки
График рабочей точки
Схема электрического подключчения
Расшифровка наименования
1) Тип
A - осевой вентилятор
S - осевой вентилятор с защитной решеткой
W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
D - Трехфазный двигатель
Е - Однофазный двигатель с пусковым конденсатором
G - ЕС-двигатель
S - Двигатель с расщепленными полюсами
Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя
5) Код механического исполнения
6) Код электрического исполнения
7) Код вариантов механического исполнения
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Материал | Сталь |
Подключение | Клеммная коробка |
Уровень шума [dB/A] | 78 |
Бренд | Ebmpapst |
Вес [кг] | 52.4 |
Производительность [м3/ч] | 21770 |
Частота [Гц] | 50 |
Питание [В] | 380, 400 |
Частота вращения [об/мин] | 885 |
Мощность [кВт] | 2.48 |
Давление [Pa] | 150 |
Типоразмер [мм] | 910 |
Сила тока [A] | 5.15 |
Исполнение | Без крепежных элементов |
Класс изоляции | «F» |
Гарантия | 1 год |
