Тип вентилятора [AC/DC]AC переменного тока | КонструкцияОсевой | Уровень шума [dB/A]78 |
БрендEbmpapst | Вес [кг]24.9 | Производительность [м3/ч]15755 |
Частота [Гц]50 | Питание [В]380 | Частота вращения [об/мин]1380 |
Тех описание Hyblade Ebmpapst S4D630-BH01-07 - RU | |
Каталог Hyblade 2012 350-450 мм - EN | |
Каталог Hyblade 2010 500-910 мм - EN |

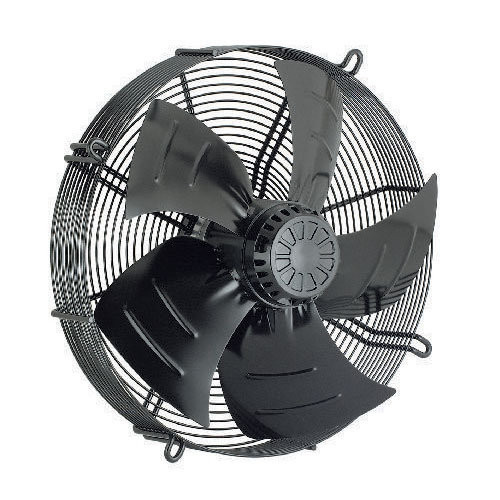

S4D630-BH01-07 решение задач в области вентиляционной техники
Для множества применений в области вентиляции Ebmpapst предлагает наиболее подходящие решения. Для решения Вашей конкретной задачи всегда найдется оптимальное решение за счет множества комбинаций различных характеристик двигателя, рабочего колеса и устройств управления.
Критерии выбора
При выборе вентилятора для конкретного применения важную роль играют следующие параметры:
- Производительность при заданном противодавлении (сопротивлении)
- Напряжение питания – постоянное и переменное (1- / 3- фазное)
- Уровень шума
- Коэффициент полезного действия
- Имеющееся пространство для монтажа и место применения
- Количество штук
- Условия окружающей среды (влажность, температура,климат)
- Диаметр рабочего колеса
Описание S4D630-BH01-07:
- Класс защиты: IP 54 (учесть положение при монтаже и наличие отверстий для слива конденсата)
- Класс изоляции: "F"
- Защита двигателя: температурный предохранитель с выведен
Рабочие параметры вентилятора S4D630-BH01-07
Тип S4D630-BH01-07 | ||
Мотор M4D138-HF | ||
Фаза | 3~ | 3~ |
Номинальное напряжение VAC | 400 | 400 |
Частота Hz | 50 | 50Y |
Метод опред. данных | мн | мн |
Соответствует нормативам | CE | CE |
Скорость вращения min-1 | 1310 | 1000 |
Входная мощность W | 1970 | 1290 |
Потребляемый ток A | 3,4 | 2,1 |
Макс. противодавление Pa | 200 | 115 |
Мин. темп. окр. среды °C | -40 | -40 |
Макс. темп. окр. среды °C | 60 | 60 |
Пусковой ток A | 14 | 4.5 |
Общий КПД % | 35,4 | |
Класс эффективности N | 40 | |
Входная мощность kW | 1,89 | |
Расход воздуха m?/h | 12645 | |
Увелич. давления Pa | 188 | |
Скорость вращения min-1 | 1335 |

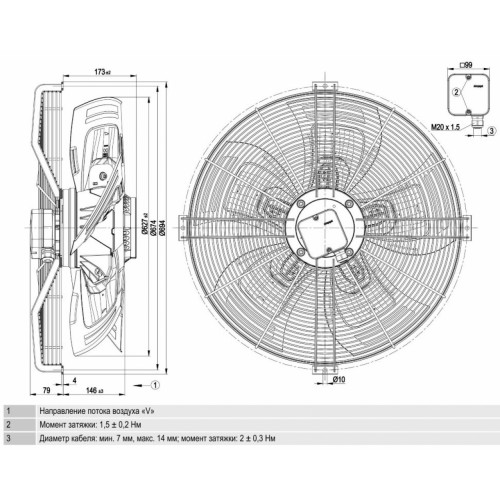

Техническое описание S4D630-AD01-01
Вес | 24,9 kg |
Размер двигателя | 630 mm |
Покрытие ротора | Скрепление заливкой с алюминием |
Материал клемной коробки | Полимер PP |
Материал лопастей | Вкладыш из алюминиевой пластины, с полимерным покрытием PP |
Материал защитной решётки | Сталь, с полимерным покрытием черного цвета (RAL 9005) |
Количество лопастей | 5 |
Направление потока | V |
Направление вращения | Справа, вид на ротор |
Степень защиты | IP 54 |
Класс изоляции | F |
Класс защиты от влажности | F3-1 |
Максимально допустимая темп. окружающей среды электродвигателя | + 80 °C |
Минимально допустимая темп. окружающей среды электродвигателя | - 40 °C |
Положение при монтаже | Любое |
Отверстия для отвода конденсата | На стороне ротора и статора |
Режим работы | S1 |
Устройство подшипников электродвигателя | Шарикоподшипник |
Контактный ток по IEC 60990 (измерительная схема рис. 4, TN-система) | 3,5 mA |
Защита двигателя | Реле контроля температуры (TW) |
Вывод кабеля подключения | Осев. |
Класс защиты | I (если защитный провод подключен стороной заказчика) |
График рабочей точки
Схема электрического подключения
Расшифровка наименования
1) Тип
- A - осевой вентилятор
- S - осевой вентилятор с защитной решеткой
- W - осевой вентилятор со стеновым колесом
2) Количество полюсов (для AC) / Количество контуров (ЕС)
3) Тип двигателя
- D - Трехфазный двигатель
- Е - Однофазный двигатель с пусковым конденсатором
- G - ЕС-двигатель
- S - Двигатель с расщепленными полюсами
- Q - Квадратный двигатель с расщепленными полюсами
4) Диаметр рабочего колеса в мм / Размер двигателя для двигателя;
5) Код механического исполнения;
6) Код электрического исполнения;
7) Код вариантов механического исполнения
Тип вентилятора [AC/DC] | AC переменного тока |
---|---|
Конструкция | Осевой |
Уровень шума [dB/A] | 78 |
Бренд | Ebmpapst |
Вес [кг] | 24.9 |
Производительность [м3/ч] | 15755 |
Частота [Гц] | 50 |
Питание [В] | 380 |
Частота вращения [об/мин] | 1380 |
Мощность [кВт] | 1.97 |
Давление [Pa] | 200 |
Типоразмер [мм] | 630 |
Сила тока [A] | 3.4 |
Исполнение | Решетка |
